BlueTexGPS

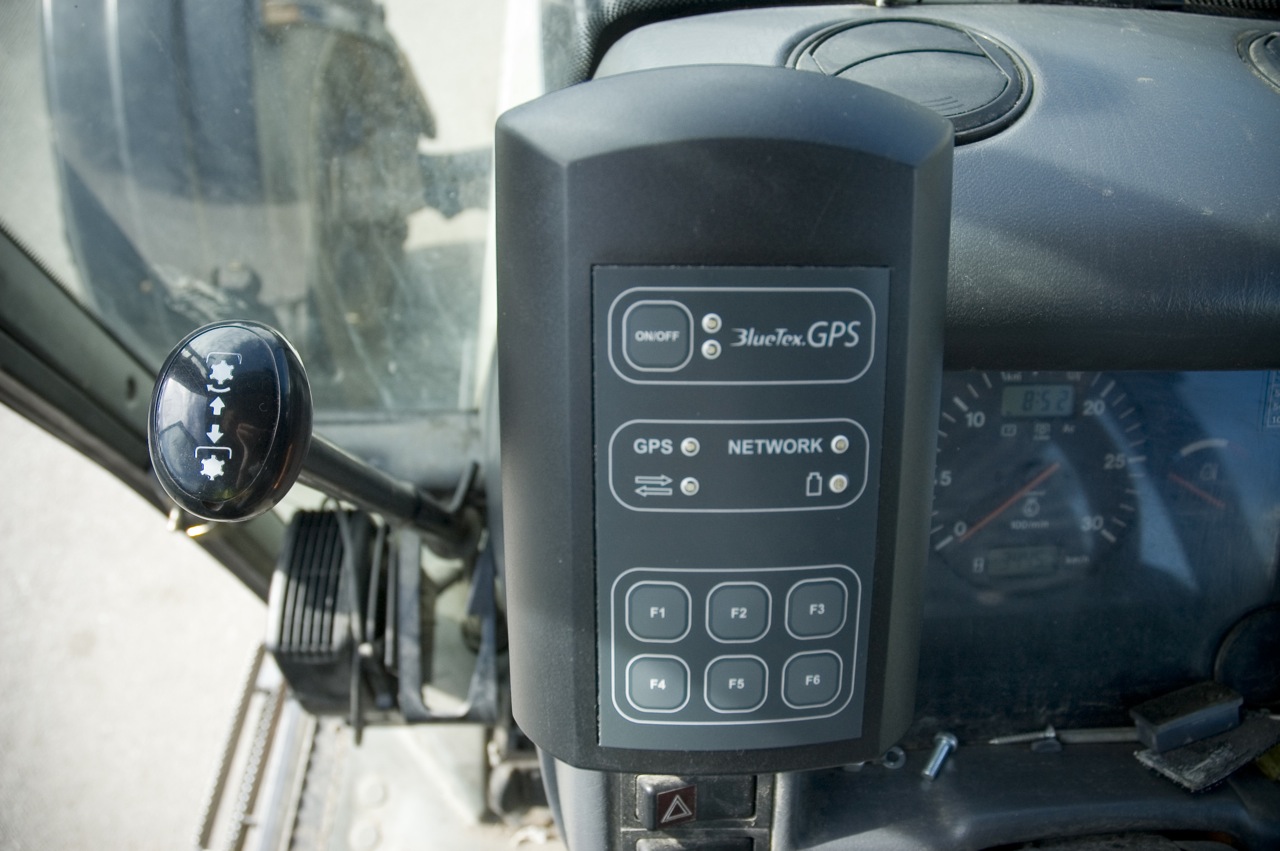

dsc_3812_1
Simplicity in a box, the BlueTexGPS offer a full-blown tracking service through GPS and GPRS/Mobitex. All of this is fitted in a small rugged box that requires no installation.

The BlueTexGPS is a true plug and play device enabling ASPs and system integrators to offer powerful unique solutions to their customers. The BlueTexGPS also offer the user extremely simple status handling through six configurable function buttons making it very useful in many applications.

Track record

When we developed the BlueTexGPS solution we started with looking in the rear view mirror, together with our partner Mowic AB, pin pointing customers problems and their high priorities. The research gave us the answers we were looking for…

  • 90% of all hardware problems that arises in field are due to installation and interfacing with vehicles.
  • Many systems that are deployed are not used due to difficult handling of hardware.
  • Sub contractors react very negative to installations causing damage to the vehicle when installed.
  • Too high overall cost.

    • Based on this research the functional specification for the BlueTexGPS was created.

    “We need a device that requires no installation, can be handled extremely easy, keep a low overall cost and of course offer a full blown tracking service.”

    Customer quotes

    “I can place it inside my subcontractor’s vehicles without the hassle of installing anything and still be able to assure quality of the sub contractors work.”
    - Per Hallberg, Project manager PEAB

    “We have based our turn key solutions on the BlueTexGPS. We work in a very competitive marketplace but we have still been able to sign some very good contracts. One reason for this is that the BlueTexGPS makes us unique in our offerings.”
    - Mats Wärme, Project manager and key account manager, MOWIC

    Key features

  • Complete end user device
  • No installation Required
  • Simple status handling
  • Automatic On/Off trough ignition.
  • Global coverage trough GSM/GPRS
  • Precise tracking trough GPS
  • Cost effective communication
  • Enhanced GPS sensitivity for indoor and outdoor position reports
  • No external wires or antennas

    		•

    Heavy duty

    Robust design can be used with the gloves on.

    Simplicity

    Intuitive design, easy to use.

    Plug & Play

    Perfect when using sub contractors.

    Technical Specifications


    Communication
    GSM (850/900/1800/1900 MHz) GPRS Class 10 Integrated TCP/IP stack
    Mobitex (400/800/900MHz) MASC

    GPS
    16 channel GPS receiver Indoor
    sensitivity Embedded TCXO
    (WAAS, EGNOS) support

    Power
    Embedded batteries 16 h operation time

    		Environmental
    IP 54

    Operating temperature
    - 20 degrees C + 55 degrees C

    		Size
    150x100x42mm

    Weight
    Max 317 gram
